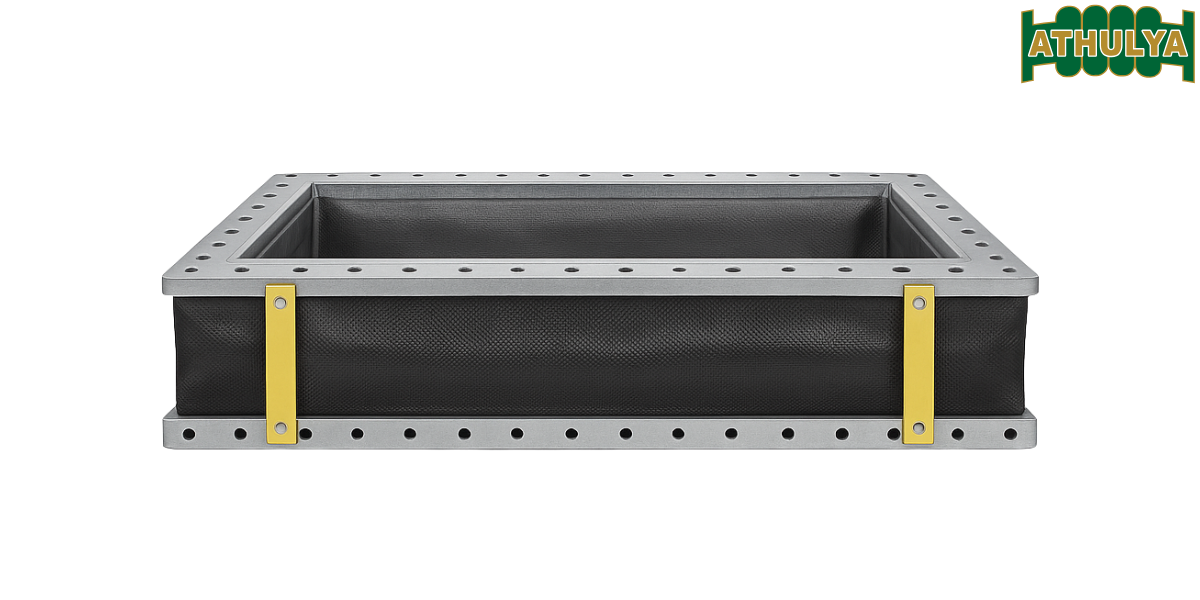

Fabric / Duct Expansion Joints
Fabric (non-metallic) expansion joints are flexible connectors for air, flue gas, and low-pressure process ducts, designed to absorb thermal growth, vibration, and misalignment while providing reliable sealing in rectangular or circular ducting. Athulya supplies single-layer and multi-layer belt constructions with insulation pillows, backing bars, and clamping frames engineered to suit service conditions and layout constraints.
Key Features
• Handles axial and lateral movements; excellent vibration isolation on fans/blowers.
• Custom belt constructions: PTFE/fluoropolymer, silicone/glass, EPDM, neoprene, and composite stacks.
• Insulation pillows and flow liners to manage temperature and gas velocity/particulate.
• Supplied for rectangular or circular ducts; frames with backing bars & clamp bars.
• Gas-tight sealing with appropriate edge finishes and splice designs.
• Optional external covers for weather/UV; control units where restraint is specified.
Applications
• ID/FD fans, air & flue-gas ducts in power, steel & cement plants.
• Refinery/petrochemical process & utility ducts, exhaust/manifold connections.
• Large HVAC & district heating/cooling rectangular mains and plenums.
Technical Data
| Parameter | Value / Range | Notes |
|---|---|---|
| Duct Size / Shape | Project-specific | Rectangular or circular; engineered to site dimensions |
| Pressure Class | As per design/service | Low to moderate duct pressures; sealing per spec |
| Temperature | Construction-dependent | Fabric stack, pillow & liner selected for medium/temperature |
| Movement Capability | Axial / Lateral (project-specific) | Face-to-face and belt profile set per required movements |
| Belt Materials | PTFE / Fluoropolymer, Silicone-glass, EPDM, Neoprene, Composites | Single or multi-layer belt stacks |
| Frames & Hardware | CS / SS frames, backing & clamp bars | Surface protection/coatings as required |
| End Connections | Bolted clamping frames | Gasket/edge finish per sealing requirement |
| Accessories | Insulation pillows, flow liners, external covers | Control units if specified; shipping bars removed at install |
Design Options
• Multi-layer belt stacks with gas-barrier film; splice type per duct access.
• Pillow density/thickness to shield the belt from hot surfaces.
• Internal flow sleeves/liners for velocity or particulate protection.
• Weather/UV covers; removable sections for maintenance access.
Quality & Testing
• Visual/dimensional checks, leak/pressure checks as specified for service.
• Material certificates and documentation provided on request.
